Seats Canada Cataloguelogo1.gif (9081 bytes)



Technical Drawing

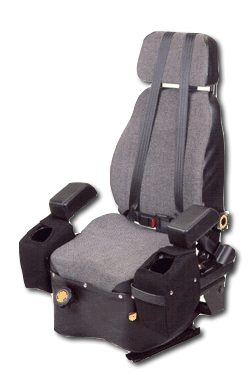

Mag200.  When extreme jobs call for maximum operator comfort, choose the high quality and extreme duty performance of the mechanical suspension Magnum 200 Extreme Duty™ seats. They feature Seats Incorporated's "knee-action" suspension that flexes naturally with the operator's body, absorbing shock and vibration like no other suspension can. These seats will handle virtually any operating need off-highway, including agricultural, construction, logging, mining, earthmoving, and large material-handling equipment. The Magnum 200 Extreme Duty seats offer a wide range of comfort options and contemporary styling.

Standard Features

  • Patented "knee-action" mechanical reinforced suspension
  • Built-in, contoured lumbar and thigh support
  • High- or low-profile backrest
  • Easy and fast one-hand height adjustment with four positive lock positions
  • Operator weight adjustments
  • Contour comfort cushions with heavy (32 oz.) vinyl upholstery
  • Infinite-position seat-back angle adjustment (15° range)
  • Double sided backrest recliner mechanism
  • 1 set of 6" double locking tracks welded to 1 set of free tracks for fore/aft adjustment
  • Twin shock absorbers
  • Long-life, self-lubricating Teflon-impregnated bearings
  • Grade 8 rear pivot hardware
  • 2-way adjustable lumbar support
  • Comprehensive warranty

Optional Features

  • Adjustable padded armrests for side-to-side safety support
  • Extreme duty padded armrests
  • Tuff-Tex™ fabric or heavy-duty 45 oz. vinyl
  • Custom logo embroidery or heat stamping
  • Joystick control carriers
  • Joystick control carrier covers
  • Owner/operator mesh pocket
  • Suspension skirt
  • Intermediate seat belt connecting point links
  • Seat belts - lap and/or shoulder
  • Tether straps
  • Fully reclining backrest
