Seats Canada

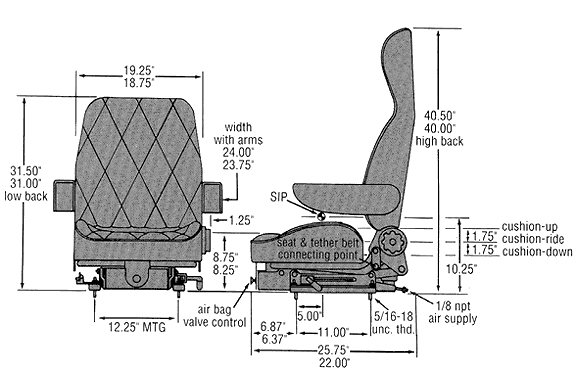

TECHNICAL DRAWING
Laredo/Magnum 300 (AIR SUSPENSION)








NOTES:
This drawing, owned by Seats, Inc. Reedsburg, WI and Seats Canada Inc. Mississauga, ON, is conditionally loaned and its disclosure to the recipient is in confidence. In receiving it, the recipient agrees not to reproduce or copy it in whole or part without written consent or to furnish information from it to others or to make any use of it that is, or may be injurious or damaging to Seats, Inc and Seats Canada Inc.

The Installer is solely responsible for determining the suitability for use of this product in each application.


** This drawing is for engineering purposes only. Contact Sales Dept. or refer to sales literature for trim and color options.



TITLE:
Laredo/Magnum 300 (AIR SUSPENSION)
SCALE:
Not to Scale. DO NOT SCALE FROM DRAWING
